Loads

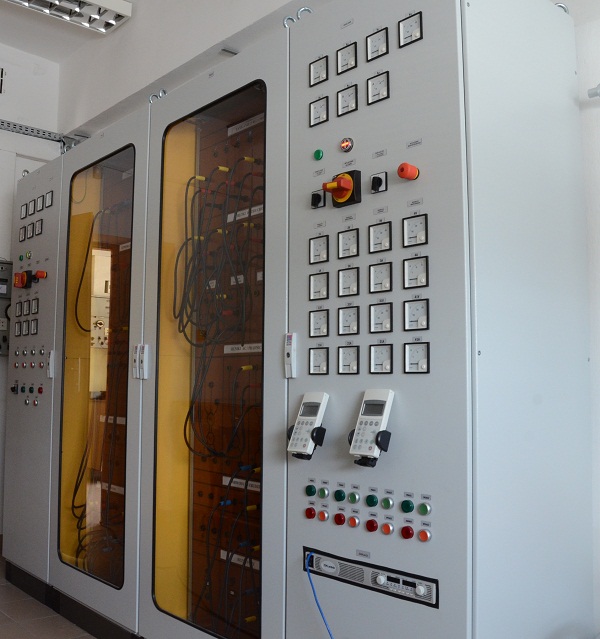

The model of loads in the Institute of Electrical Power Engineering allows for mapping of typical devices in the network. The model includes:
4 squirrel cage engines with the cumulative power 3,5 kW, loaded with the DC power generators, controlled by the excitation current
3 coils with the controllable reactance value and apparent power controlled by the autotransformer
three-phase, half wave rectifier with a power controllable in the range 0-30 kW by autotransformers
